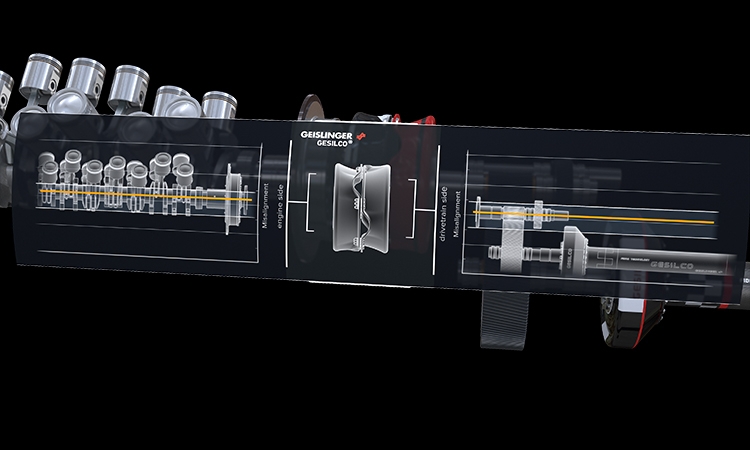

FUNCTIONALITY OF THE GESILCO® COUPLING
Product
LIGHTWEIGHT MISALIGNMENT COUPLING
Description Tech Overview Tech Gallery Related Products
Download

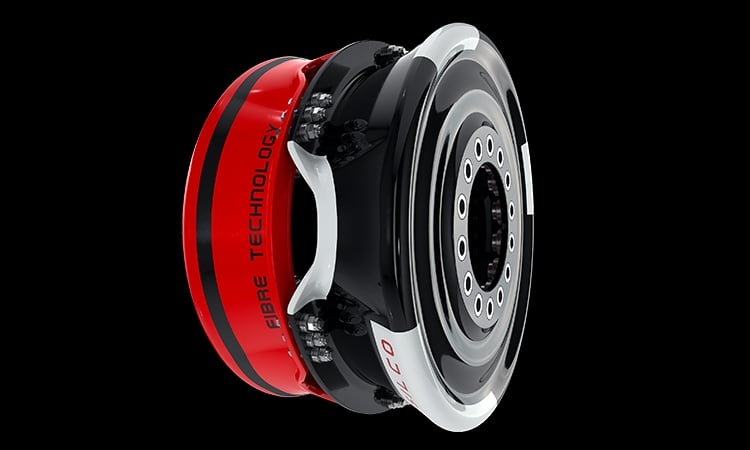

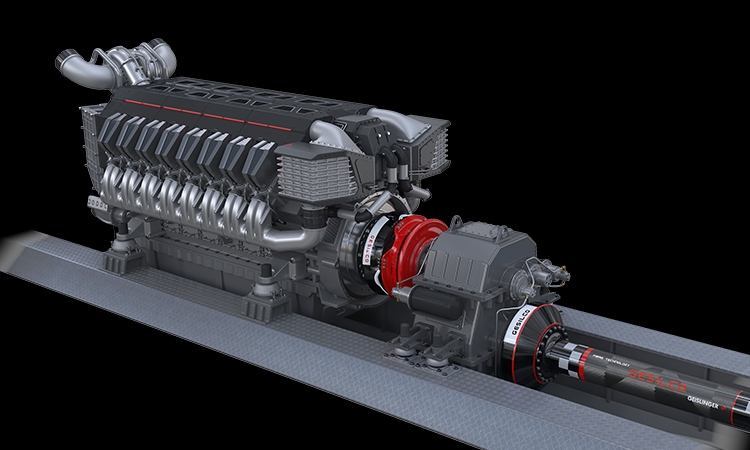

The Geislinger GESILCO® Butterfly is a maintenance-free misalignment coupling. The membranes of the coupling are made of lightweight and highly flexible composite materials to achieve the lowest reaction force possible, which increases the system’s reliability by protecting the driveline and bearings from possible overloads. This unique coupling is suitable for a wide range of applications. Its multiple designs make it compatible with a variety of connection interfaces.

The compact and lightweight GESILCO® Butterfly is designed to compensate radial, axial, and angular misalignments. Drivetrain systems benefit from low, almost linear reaction forces, as well as from the highest torque transmission with the best dynamic behavior. Further advantages are electrical insulation and non-magnetic properties. Even under extreme conditions, the high shock resistance of this coupling is a great benefit.

The material, design, size, function, and fiber orientation of the GESILCO® Butterfly coupling can be adapted to the specific requirements of various applications and therefore allows tailor-made solutions. The highly flexible membranes, intermediate shaft and flanges are made of advanced composite material and manufactured as a single piece. Individual installation length situations can be adjusted by using high graded steel spacers between the two coupling halves. The innovative HSO product line enables easy assembly through its openings in the intermediate shaft.

The Geislinger GESILCO® Butterfly misalignment coupling can be combined with a Geislinger torsional elastic coupling and is suitable for a wide range of applications, especially those, where weight, high shock capabilities and electrical insulation is of concern. The Geislinger GESILCO® product range is based on more than 25 years of experience in developing fiber composite couplings and shafts. All GESILCO® products are 100% engineered, developed and manufactured at our Austrian Geislinger locations.

Advantages

  • More than 25 years of experience
  • The most lightweight solution on the market
  • Low reaction forces
  • Customized solutions based on customer requirements
  • 100% in-house engineering, development, and production
  • Maintenance-free
  • High misalignment capacity
  • Electrically insulating
  • Almost non-magnetic

Technical data

  • Torque range: up to 1.000 kNm
  • Ambient temperature: -45°C to 100°C
  • Angular misalignments: up to 3°
  • Diameters: up to 2 m
  • Length: up to 1,6 m

Applications

  • Marine
  • Power Generation
  • Off-Highway
  • Wind Power & Renewables
  • Industrial Applications
  • Digital Solutions

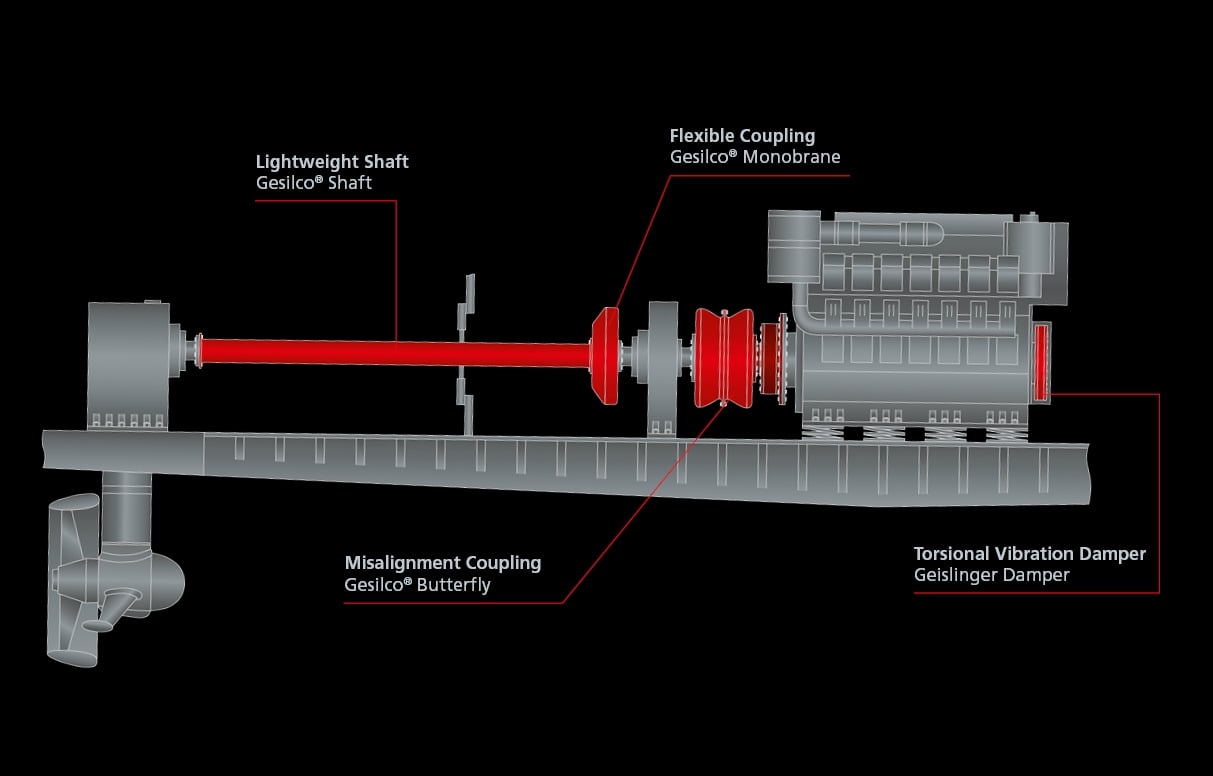

5 4 stroke engine mechanical driveline to z drive
01/12

Elastically mounted 4-stroke engine with mechanical driveline to z-drive, bulkhead seal and Gesilco® composite shaftline.

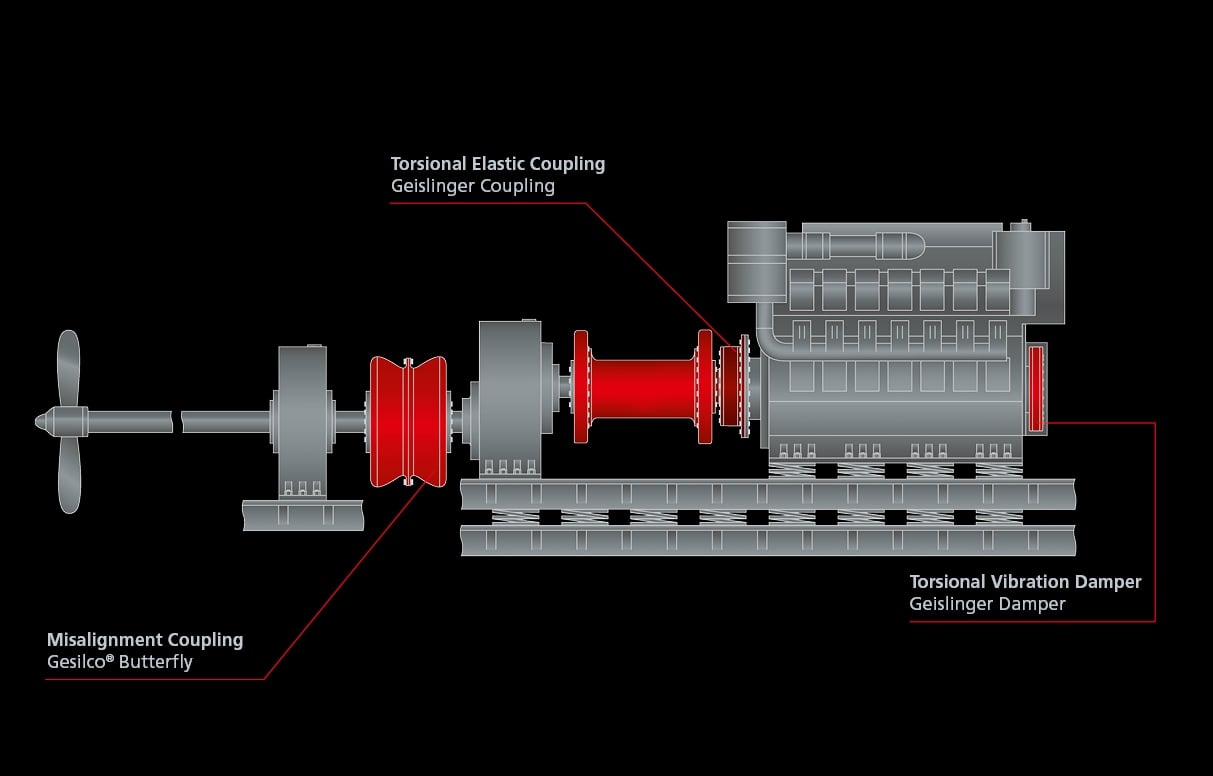

7 4 stroke engine mechanical driveline
02/12

Double elastically mounted 4-stroke engine with mechanical driveline.

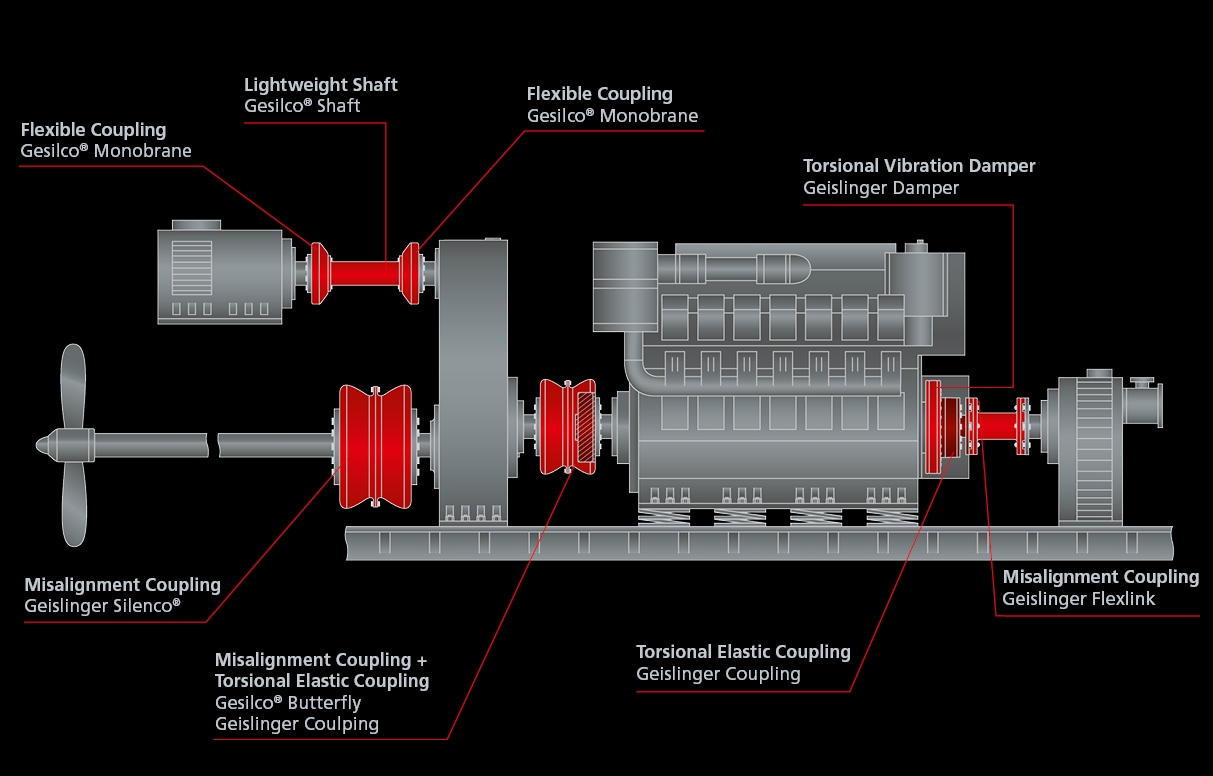

9 hybrid drive system with 4 stroke engine PTO PTI and FIFI
03/12

Elastically mounted hybrid drive system with 4-stroke engine PTO/PTI and FIFI pump.

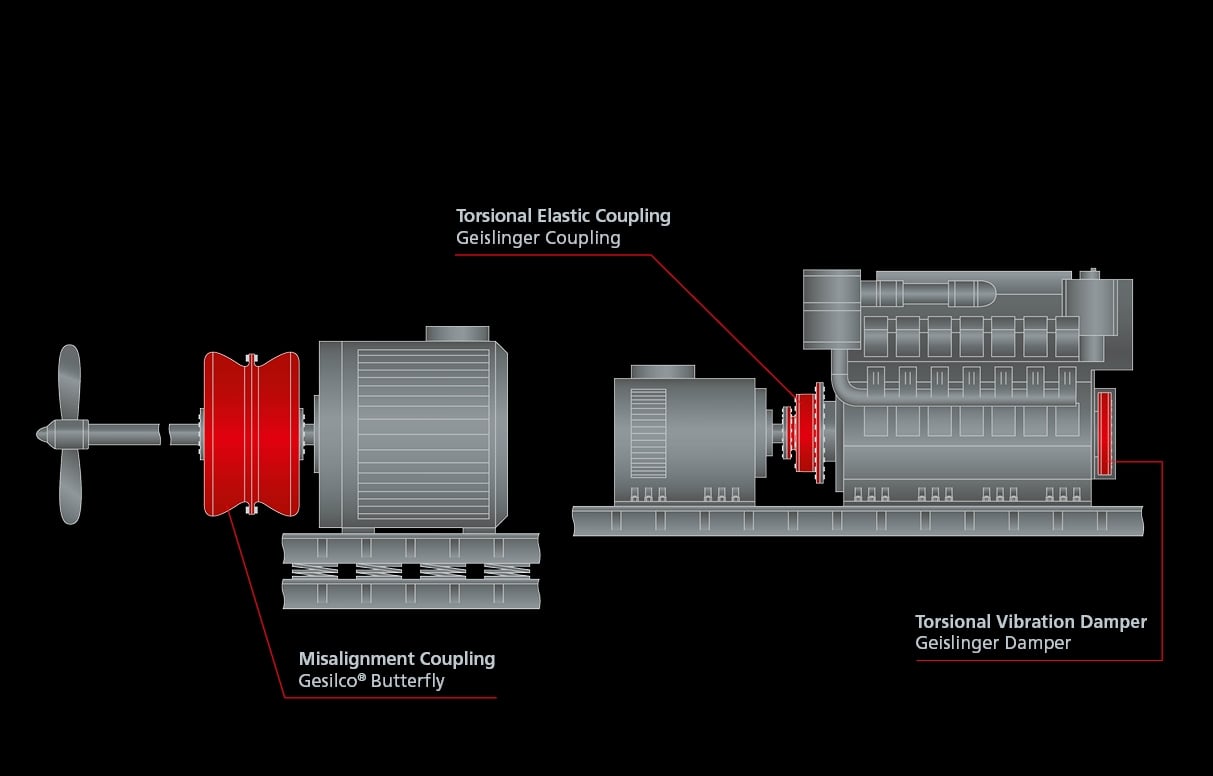

12 4 stroke engine double bearing generator and electric driveline
04/12

Rigidly mounted 4-stroke engine with double bearing generator and electric driveline.

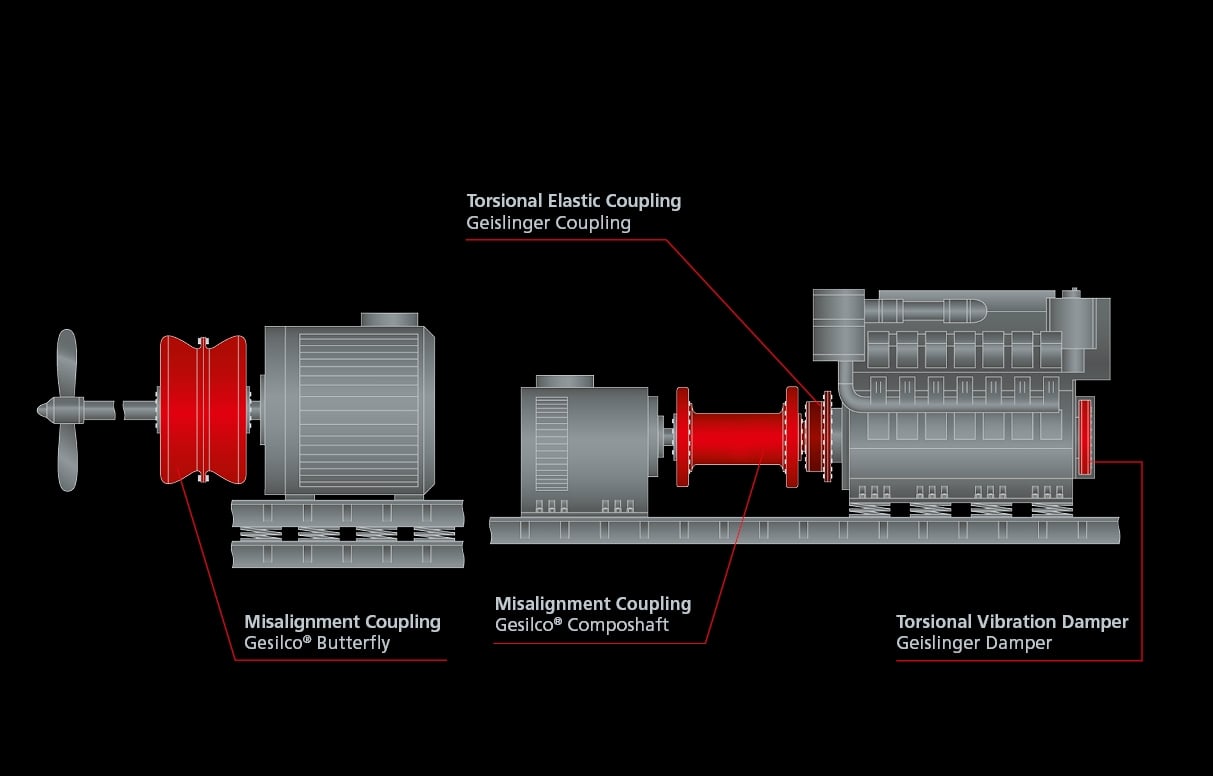

13 Elastically mounted 4 stroke engine double bearing generator and electric driveline
05/12

Elastically mounted 4-stroke engine with double bearing generator and electric driveline.

14 4 stroke engine with transmission to a double bearing generator
06/12

Rigidly mounted 4-stroke engine with transmission to a double bearing generator.

4 EH electric motor with a direct driven propeller system clean
07/12

Elastically mounted electric motor with a direct driven propeller system.

7 EH acoustically optimized electric driveline clean
08/12

Acoustically optimized electric driveline.

8 EH elastically mounted hybrid marine powertrain
09/12

Elastically mounted hybrid marine powertrain.

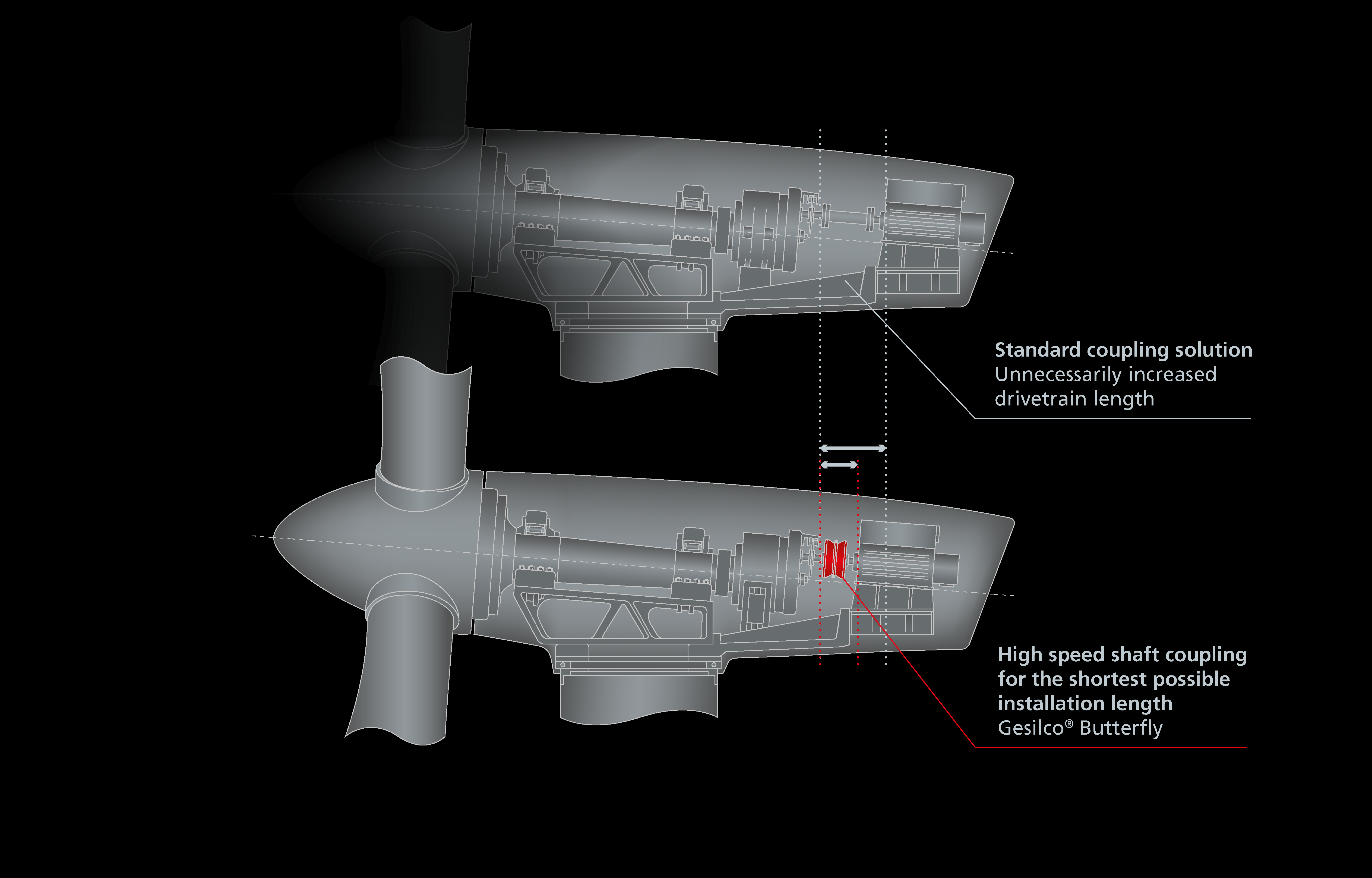

5 Geislinger Compowind Drivetrain with 4 point or 3 point support
10/12

Drivetrain with 4-point or 3-point support.

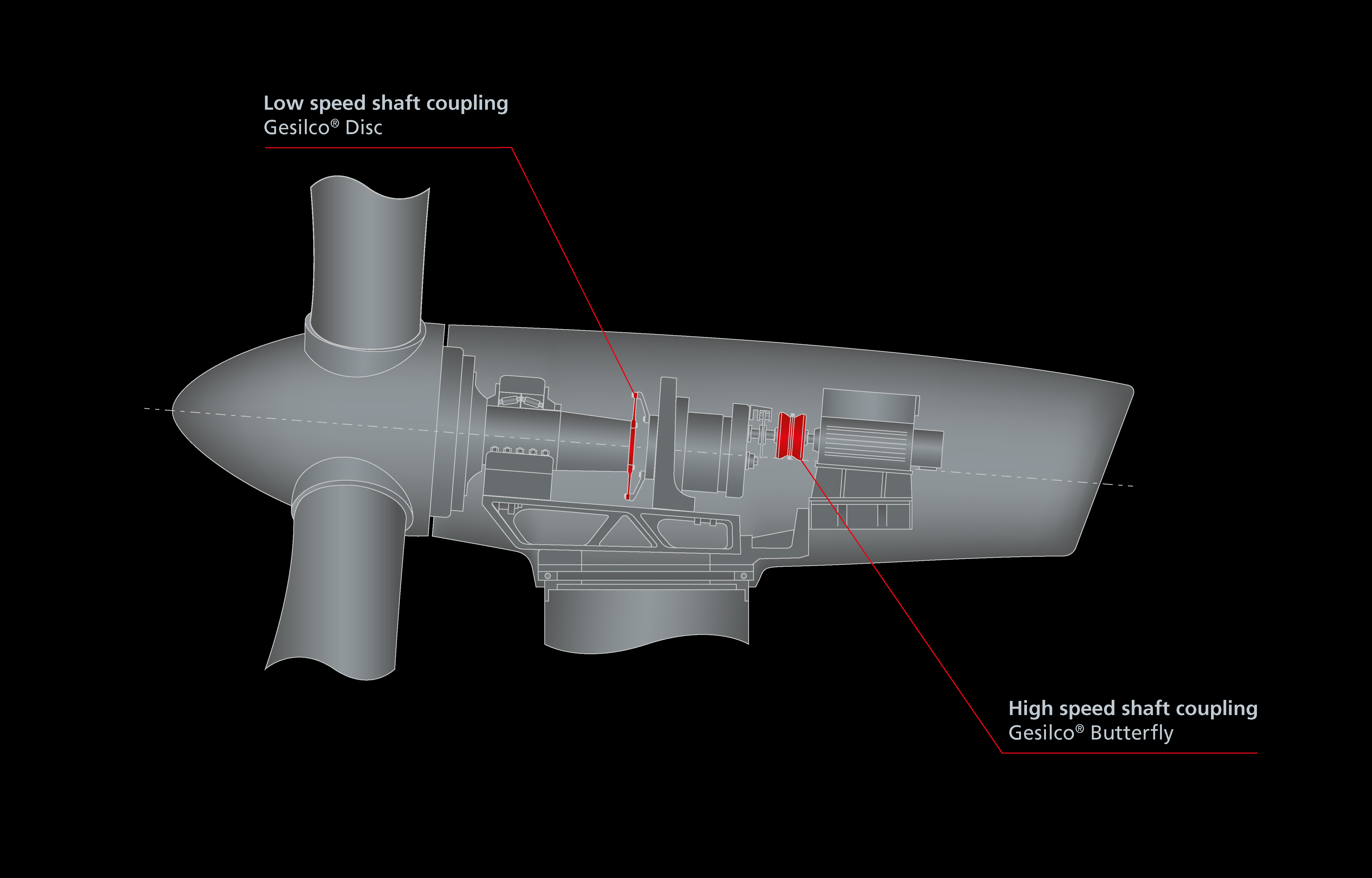

6 Geislinger Compowind Drivetrain with 3 point support
11/12

Drivetrain with 3-point support.

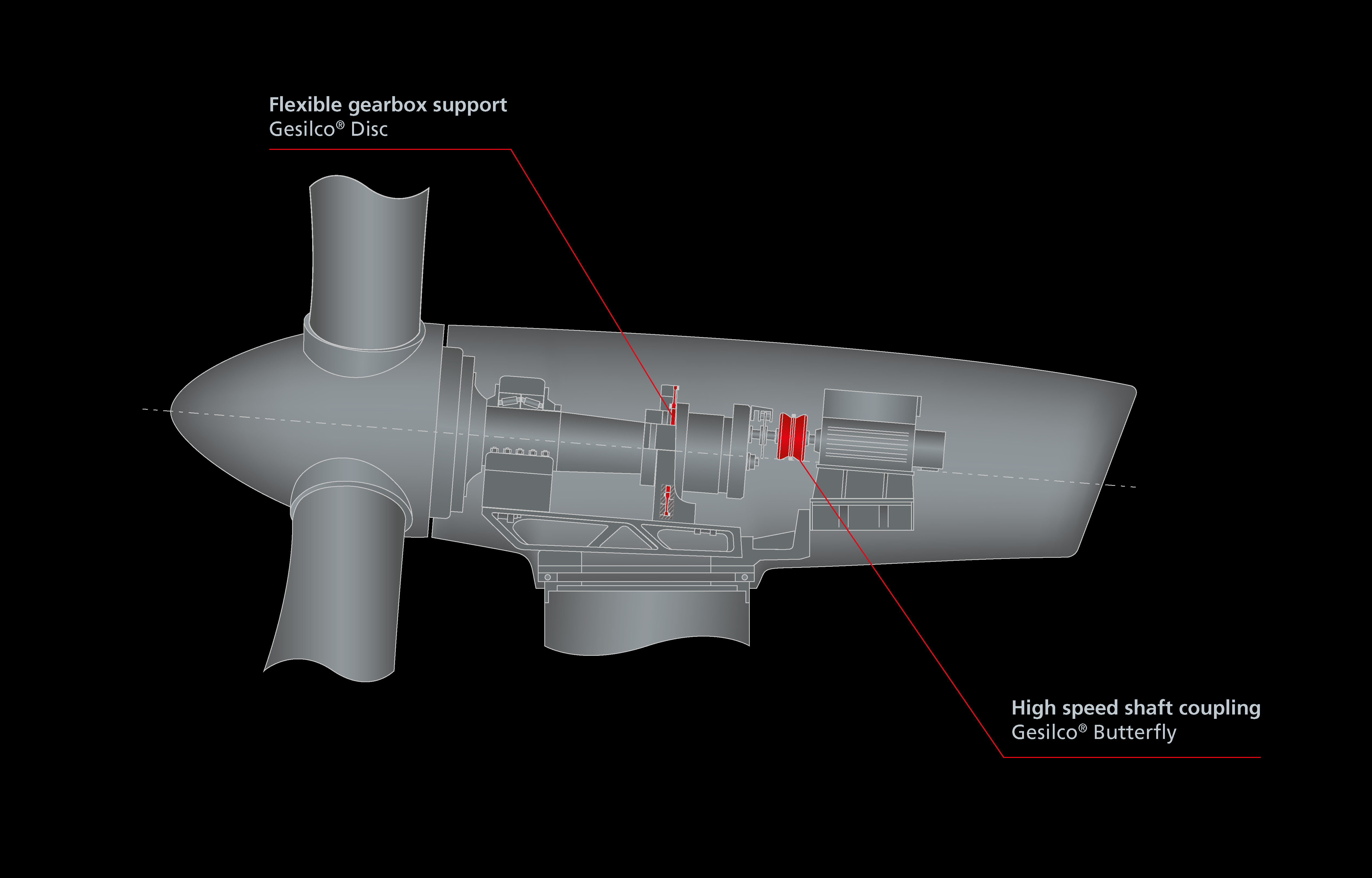

8 Geislinger Compowind Drivetrain with 3 point support
12/12

Drivetrain with 3-point support.
